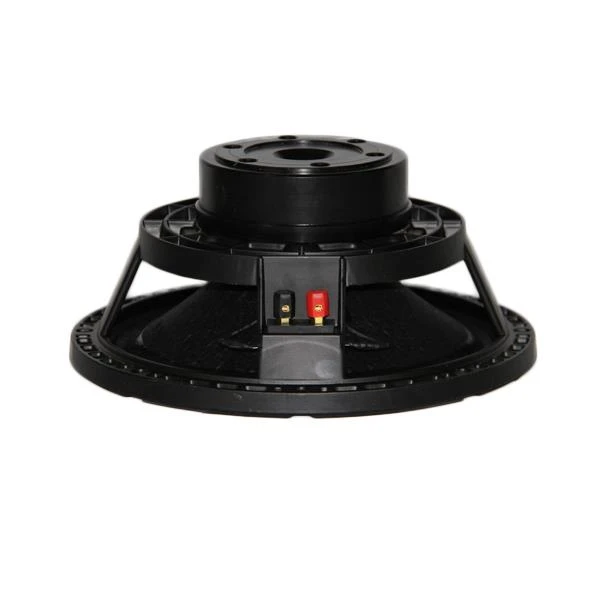

Mid Range Speaker with NEO Magnet

Features

3-inch,fibreglass inside-outside copper voice coil

700 Watt continuous program power capacity

97 dB Sensitivity

65-3500 Hz Frequency range

NEO magnet

Ventilated voice coil gap for reduced power

Shorting copper cap for extended HF response

Single spider suspension

Die cast Aluminum Chassis

Specification

Nominal diameter 250 mm/10 in

Power rating 350W(AES)

Continuous Power handling: 700W

Nominal impedance 8OHM

Sensitivity 97 d B

Frequency range 65-3500 Hz

Voice coil diameter 75.5 mm/3 inch

Winding material: copper

Former material : glass fiber

Winding depth :12 mm

Magnetic gap depth: 10 mm

Flux density :1.25T

Parameters

Resonance frequency : 59HZ

Re: 5.2 Ω

Qec:0.27

Qms: 4.3

Qts:0.26

Vas: 22.0dm³

Sd:320.0cm²

Xmax: 6.0mm

Xvar:5.5mm

Mms:47.0g
